HVAC Blower Motor Resistor Complete Kit with Harness - Replaces 15 81773, 89018778, 89019351, 1581773, 15-81773 Compatible with Chevy, GMC Vehicles - Silverado, Tahoe, Suburban, Sierra, Yukon XL

HVAC Blower Motor Resistor Complete Kit with Harness - Replaces 15 81773, 89018778, 89019351, 1581773, 15-81773 Compatible with Chevy, GMC Vehicles - Silverado, Tahoe, Suburban, Sierra, Yukon XL

HVAC Blower Motor Resistor Complete Kit with Harness - Replaces 15 81773, 89018778, 89019351, 1581773, 15-81773 Compatible with Chevy, GMC Vehicles - Silverado, Tahoe, Suburban, Sierra, Yukon XL

SKU:

Vendor: GWA Auto Parts

Availability:

$34.99

Quantity:

HVAC Blower Motor Resistor Complete Kit with Harness - Replaces 15 81773, 89018778, 89019351, 1581773, 15-81773 Compatible with Chevy, GMC Vehicles - Silverado, Tahoe, Suburban, Sierra, Yukon XL

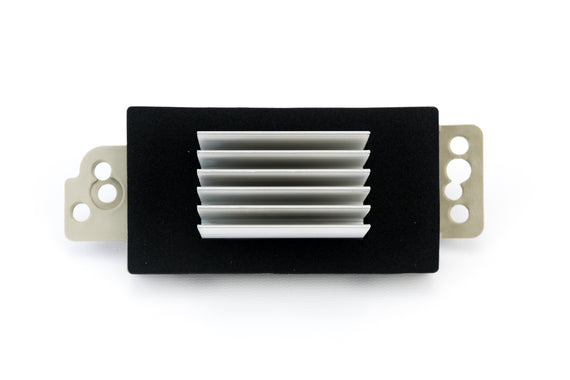

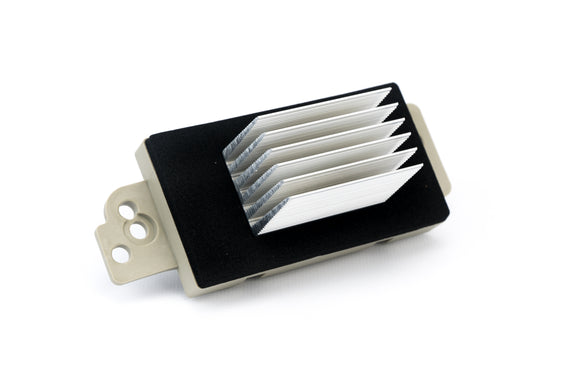

Replaces 3 PIN AC Blower Motor Resistor - Controls the fan speed for your AC and heating system. If you can no longer adjust the air speed with your AC controls, or your A/C system no longer blows air, chances are you need a new Blower Motor Resistor. This COMPLETE KIT includes the Blower Motor Resistor, New Wire Harness, Wire Harness Connectors, Screws, & Washer. The AC Blower Motor Resistor is located on the lower passenger side dash and is easily accessible by removing a few screws.
Compatible Replacement for Chevrolet, GMC & Other GM Vehicles With Auto AC Controls - 2003 - 2006 Silverado 1500, 2500, Tahoe, Suburban | 2003-2006 Avalanche | 2003-2006 Sierra 1500, 2500, Yukon, Yukon XL | 2003 - 2009 Trailblazer & GMC Envoy | 2004 - 2007 Rainier | 2003-2006 Escalade, EXT, ESV | And More, SEE BELOW for all vehicles.
Replaces Part# - 15-81773, 89018778, 89019351, 19260762, 15-80567, 52495874, 251946786, 52416100, 22754990, 15850268, 10325408, 10356906, 10397570, 15827470, 15827491, 52497491, 89018653, 89018849, 89018964, 93803635, 93803636, 973-508 on various vehicles from model years including 2003, 2004, 2005, 2006 and 03, 04, 05, 06 with Auto AC Controls.
OEM Fit, Quality & Finish - This part is a direct replacement for your factory HVAC Fan Blower Motor Resistor. While this is NOT a genuine OEM part, it is a direct replacement and easily installs into your AC blower motor. Simply remove the screws that secure the blower motor resistor into the blower, remove the resistor assembly, and install the new resistor in place.
Lifetime Warranty - This Blower Motor Control Module Complete Kit comes with a Lifetime Warranty included. If the chevy blower resistor ever fails on your vehicle, simply contact us for a free replacement.

The AC Blower Motor Resistor controls the fan speed in your AC and heating system. If you can no longer adjust the air speed with your AC controls or your AC system no longer blows chances are you need a new Blower Motor Resistor. This COMPLETE KIT includes the Blower Motor Resistor, New Wire Harness, and Wire Harness Connectors. The AC Blower Motor Resistor is located on lower passenger side dash and is easily accessible by removing a few screws. Installation can be completed in under 20 minutes and you can save hundreds by doing this repair yourself.

The factory blower resistor features a flawed connector and resistor design. In order to properly replace your AC Blower Resistor the Resistor as well as the Wire Harness will need to be changed.

AC not blowing air
AC continues to blow air when turned off
No air blowing on low AC setting
No air blowing on high AC setting

This is a compatible replacement part manufactured by AA Ignition. This Blower Motor Resistor is NOT a genuine Chevrolet, GM or Dorman part. GM and their associated vehicle models and part numbers are used in this listing only to identify the vehicles this Blower Motor Resistor fits.

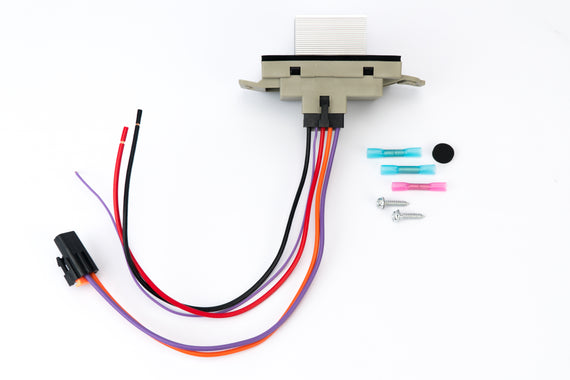

Complete Kit

This kit comes complete with everything needed to replace your factory blower motor resistor.

Each Kit Includes:

Blower Motor Resistor
Wire Harness
(3) Heat Shrink Crimp Connectors
(2) Mounting Screws
Mounting Washer

Fits the Following Vehicles with AUTO A/C Controls


Chevy Models 2003-2006 Silverado 1500 2003-2006 Silverado 1500 & 2500 HD 2007 Silverado 1500 & 2500 HD Classic 2003-2004 Silverado 2500 2007 Silverado 3500 Classic 2003-2006 Suburban 1500 & 2500 2003-2006 Tahoe 2003-2009 Trailblazer 2003-2006 Trailblazer EXT 2003-2006 Avalanche 1500 & 2500 2004-2013 Impala 2014-2015 Impala Limited 2004-2007 Monte Carlo	GMC Models 2003-2006 Sierra 1500 & 1500 HD 2007 Sierra 1500 & 2500 HD Classic 2003-2004 Sierra 2500 & 2500 HD 2007 Sierra 3500 Classic 2003-2009 Envoy 2003-2006 Envoy XL 2004-2005 Envoy XUV 2003-2006 Yukon & Yukon XL 1500 & 2500	Other GM Models 2003-2004 Oldsmobile Bravada 2004-2008 Pontiac Grand Prix 2004-2007 Buick Rainier 2005-2009 Buick LaCrosse 2005 Buick Century 2005-2010 Buick Allure 2003-2006 Cadillac Escalade & ESV, EXT	Replaces Part Numbers 15-81773 89018778 89019351 19260762 15-80567 52495874 251946786 52416100 22754990 15850268 10325408 10356906 10397570 15827470 15827491 52497491 89018653 89018849 89018964 93803635 93803636 973-508

Chevy Models

2003-2006 Silverado 1500
2003-2006 Silverado 1500 & 2500 HD
2007 Silverado 1500 & 2500 HD Classic
2003-2004 Silverado 2500
2007 Silverado 3500 Classic
2003-2006 Suburban 1500 & 2500
2003-2006 Tahoe
2003-2009 Trailblazer
2003-2006 Trailblazer EXT
2003-2006 Avalanche 1500 & 2500
2004-2013 Impala
2014-2015 Impala Limited
2004-2007 Monte Carlo

GMC Models

2003-2006 Sierra 1500 & 1500 HD
2007 Sierra 1500 & 2500 HD Classic
2003-2004 Sierra 2500 & 2500 HD
2007 Sierra 3500 Classic
2003-2009 Envoy
2003-2006 Envoy XL
2004-2005 Envoy XUV
2003-2006 Yukon & Yukon XL 1500 & 2500

Other GM Models

2003-2004 Oldsmobile Bravada
2004-2008 Pontiac Grand Prix
2004-2007 Buick Rainier
2005-2009 Buick LaCrosse
2005 Buick Century
2005-2010 Buick Allure
2003-2006 Cadillac Escalade & ESV, EXT

Replaces Part Numbers

15-81773
89018778
89019351
19260762
15-80567
52495874
251946786
52416100
22754990
15850268
10325408
10356906
10397570
15827470
15827491
52497491
89018653
89018849
89018964
93803635
93803636
973-508

Installation Instructions


Unscrew Factory Part Locate the factory blower motor resistor just above the passenger side floor board. Remove the 2 screws that secure the blower motor resistor to the blower and unplug the connector to the blower motor.	Remove Factory Plug Disconnect the vehicle's battery and cut the red, black, and purple wire on the 3 wire connector that connects to the blower resistor. Cut the wires 1 at a time	Connect New Harness Using the included wire harness and crimp connectors match each wire from the vehicle to the new harness and crimp securely. Heat shrink each wire to insure an insulated connection.	Install New Resistor Install the new resistor into the blower motor using the included screws and washer. Plug the connector from the new harness into the blower motor.

Unscrew Factory Part

Locate the factory blower motor resistor just above the passenger side floor board. Remove the 2 screws that secure the blower motor resistor to the blower and unplug the connector to the blower motor.

Remove Factory Plug

Disconnect the vehicle's battery and cut the red, black, and purple wire on the 3 wire connector that connects to the blower resistor. Cut the wires 1 at a time

Connect New Harness

Using the included wire harness and crimp connectors match each wire from the vehicle to the new harness and crimp securely. Heat shrink each wire to insure an insulated connection.

Install New Resistor

Install the new resistor into the blower motor using the included screws and washer. Plug the connector from the new harness into the blower motor.
